SCADA Services

SCADA Services

R L Laughlin & Co has partnered with ScadaCore to give our customers the ability to monitor and control ANYTHING, ANYWHERE! Customers can utilize this service to monitor and control meters, compressors, and tank levels. Monitoring is also available on water, air, wind, weather, radiation, seismic activity, geothermal, sound, and MUCH more!

When you sign up, you get access to a personalized portal to view all of your units. Trend data is available graphically and in spreadsheet views. Alarm notifications are available via email, SMS, and/or voice messages. Units not in cellular covered areas? NO PROBLEM! We have satellite communications!

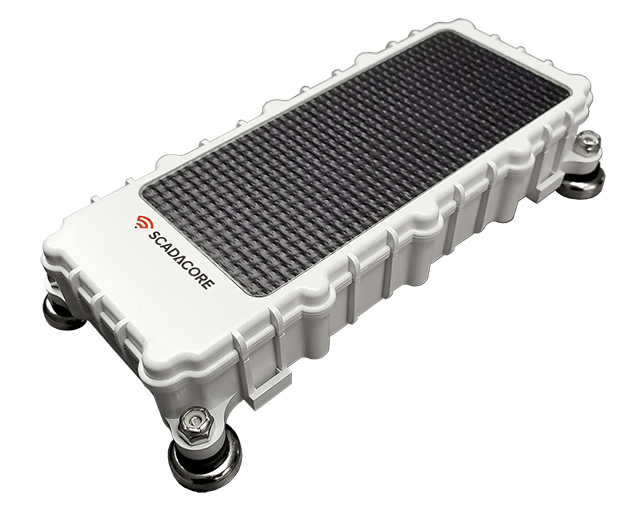

Offering the ViaCell-20 Remote Monitoring

ViaCell-20 Features:
  • Cellular monitoring for Pumpjacks, Compressors,
  • Generators, Rental Units, Pump, Motors, and More
  • Weatherproof IP67 with magnetic mount
  • Vibration Sensor, Temperature, GPS
  • Optional: BLE Door Switch Sensor, BLE Temp & Humidity Sensor
  • Alarm callout via SMS, Email, and / or Voice
  • Escalating call-lists
  • Built-in solar panel with rechargeable battery
  • 3.74 in x 7.68 in x 1.77 in
  • Temperature: -22˚F to 158˚F

Offering the ViaCell-100 Remote Monitoring

ViaCell-100 Features:
  • Monitoring for Tank Level, Water Level, Compressors, Generators, Motors,
  • Pumps, VFDs, Solar Arrays, Temperature, Wind Direction, and More
  • Embedded 4G-LTE
  • Up to 2-year Battery Life
  • Magnetic Mount
  • Solar-Panel Add-On available
  • 6 in x 5 in x 3 in
  • Class 1 Div 2
  • Connect Multiple Sensors to a Single ViaCell-100
  • 4 AIN, 4 AOUT, 1 DIN, 1 DOUT
  • Temperature: -40˚F to 185˚F

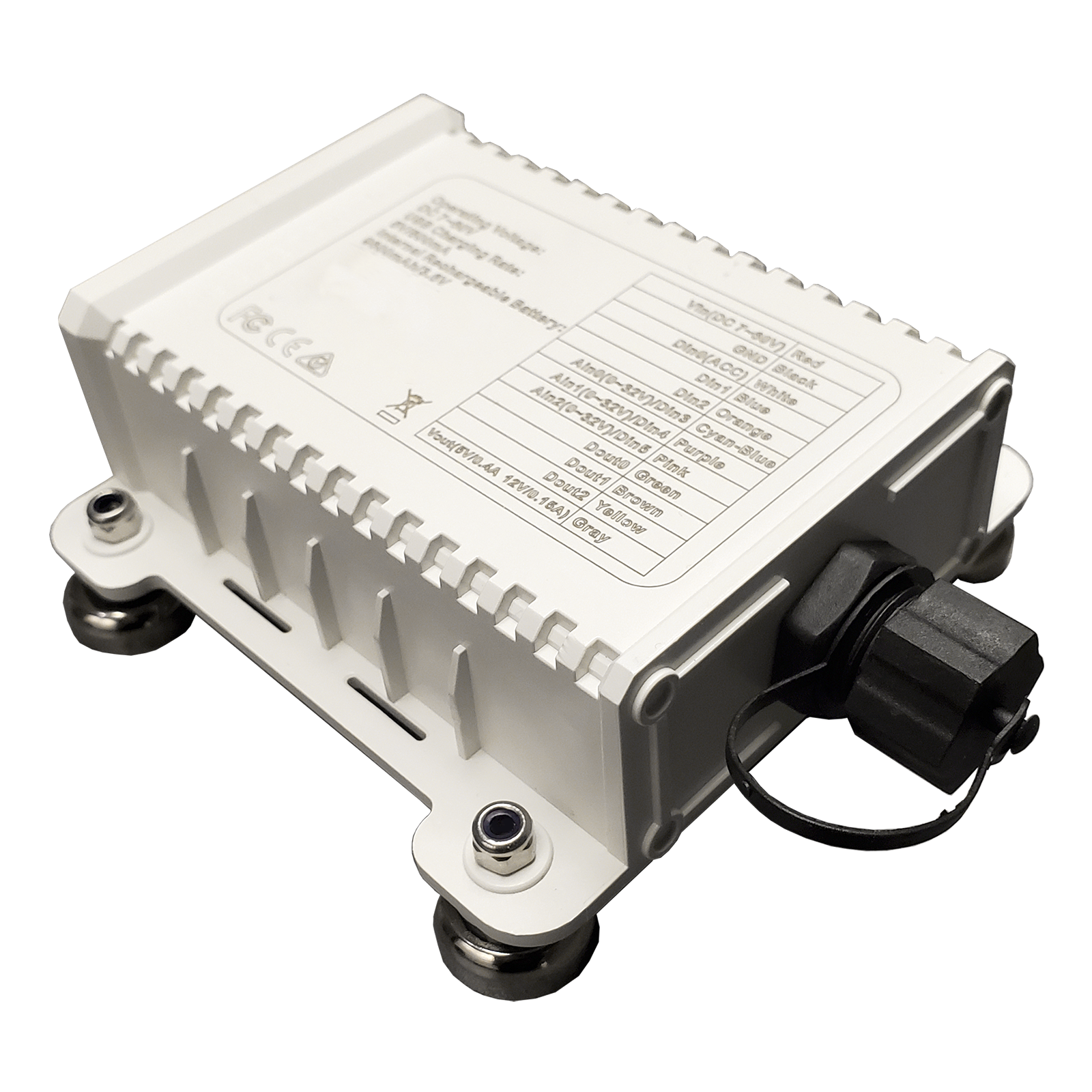

Offering the ViaCell-200 Remote Monitoring

ViaCell-200 Features:
  • Connection Cellular  |  4G, LTE  |  AT&T, Verizon
  • Monitoring Applications Pumpjacks, Tank Level, Water Level, Compressors, Generators, Motors, Pumps, Pressures, Solar Arrays, Temperature, Wind Direction, and More
  • Inputs / Outputs 3 AIN, 3 DIN, 3 AOUT
  • Alarm Callout Callout Notification via SMS, Email, or Voice Messages
  • Call Lists Escalating call lists notifies available staff of shutdowns
  • Dimensions 5.2 in x 6.1 in x 5.2 in
  • Temperature -40˚ F to 185˚ F
  • Power Built-in Rechargeable Battery, Solar-Panel Add-On
  • Rating IP67
  • Mounting Magnetic

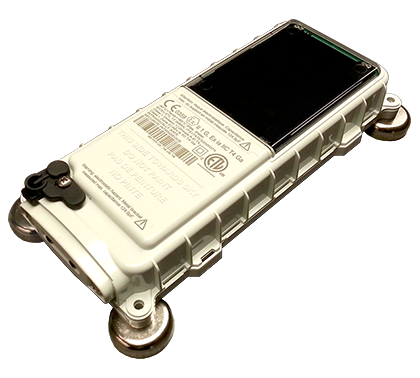

Offering ViaSat-10 Satellite Remote Monitoring

ViaSat-10 Features:
  • Satellite monitoring for Pumpjacks, Compressors, Generators, Motors, Pumps, Rental Units, Run Status, and More
  • Vibration Sensor, 2 Digital Inputs, GPS
  • Alarm Callout / Alarm Notifications via SMS, Email, and / or Voice Messages
  • Escalating Call Lists Can Be Set Up to Notify Available Staff of Shutdowns
  • Built-in Solar Panel and Rechargeable NiMH Battery
  • 3.25 in x 7 in x 1.13 in
  • Class I, Division 1, Groups A-D, T4
  • Class I, Zone 0, AEx ia IIC T4 Ga
  • ATEX/IECEx II 1 G, Ex ia IIC T4 GaT
  • Temperature: -40˚F to 149˚F
  • Magnetic Mount Option

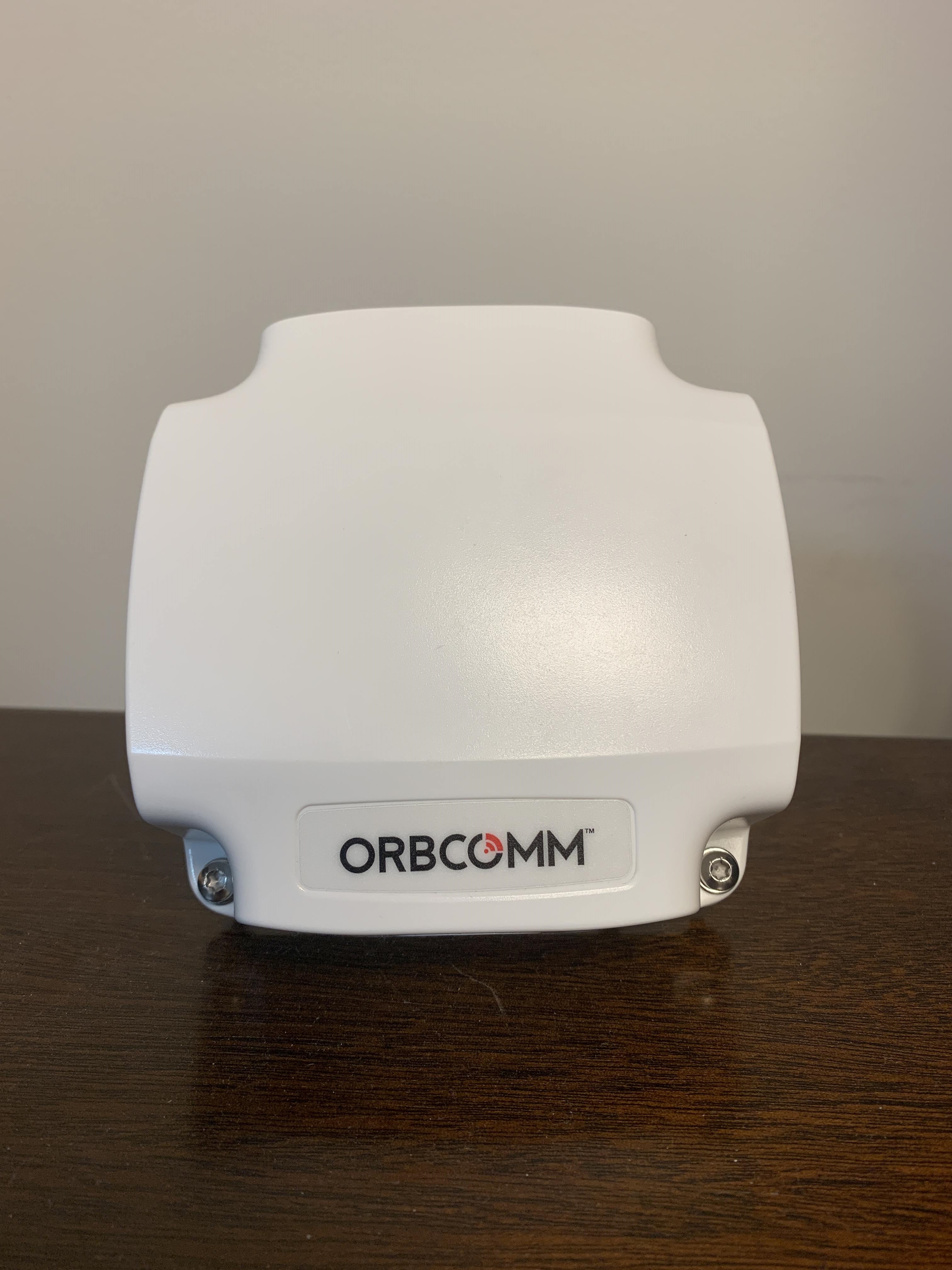

Offering the ViaSat-100 Remote Monitoring

ViaSat-100 Features:
  • Satellite Monitoring and Controlling Assets for Pumpjacks, Pipelines, Tanks, Pressure Transmitters, Flow Meters, Pumps, Generators, and More
  • Two-Way Satellite Communication
  • Elevation Angle: -5° to 90°
  • 4 Analog or Digital In/Out
  • RS-232 and RS-485
  • Compatible with Modbus, ROCTalk, ABB, and Many Devices and Protocols
  • CE, FCC, IC, Anatel, RCM Mark, IEC 60945, C1D2, SRRC, IFT, ICASA, FFA
  • Class 1 Div 2
  • Input Voltage: 9V to 32V
  • Operating Temperature: -40˚F to 185˚F
  • 4.96 in x 4.96 in x 1.93 in

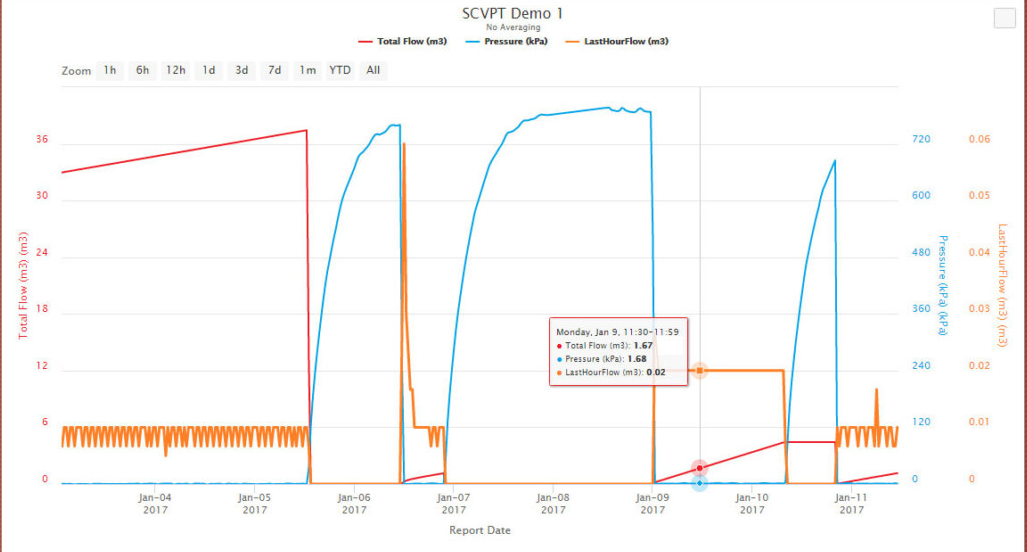

Graphical Reports

SCADA IIoT allows for feature-rich, easy-to-use graphing analysis. This allows for clients to view hourly reports, daily reports, and much more. Graphs are interactive, allowing for clients to move their mouse along graph lines to display information at that given point. Zooming in on the X and Y axis gives the client more precise examination of data points. Graphs can be exported in PNG, JPG, PDF, or SVG.

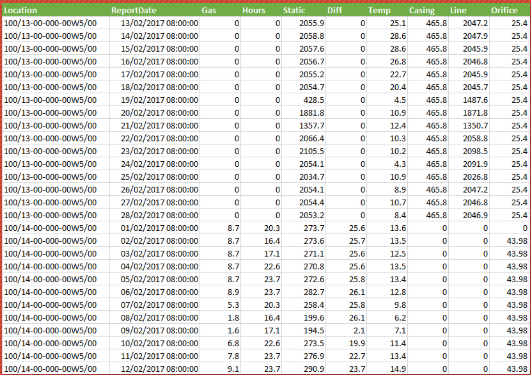

Reporting Made Easy

SCADA IIoT provides export features that can conform to almost any data format including, CSV, Excel, Pivot Table, and PDF. Users are given the option to export based on predefined data ranges or customized ranges. These exports can also be transferred to Fieldview, Prodmman, Avocet, and more.

ScadaCore Live Mobile App

SCADACore Live Mobile App is available on Android and iOS. The app allows users to monitor their production and operational data anytime, anywhere. View data, trending, alarms, historical data, and more, on your mobile device.
Contact us today for more information on SCADA/Remote Monitoring.
